• System resources are utilized in the following way:
  • Request: If a process makes a request to use a system resource which cannot be granted immediately, then the requesting process blocks until it can acquire the resource.
  • Use: The process can operate on the resource.
  • Release: The process releases the resource.
• Deadlock: A set of process is in a deadlock state when every process in the set is waiting for an event that can only be caused by another process in the set.

8.2.1  Necessary Conditions

• Mutual Exclusion: At least one resource must be held in a non-sharable way.
• Hold and Wait: A process must be holding a resource and waiting for another.
• No Preemption: Resource cannot be preempted.
• Circular Wait: A waits for B, B waits for C, C waits for A.

8.2.2  Resource-Allocation Graph

• Deadlocks can be described more precisely in terms of directed graph called a system resource-allocation graph
• Request edge: Process_i -> Resource_j
• Assignment edge: Resource_j -> Process_i

• Deadlock Prevention and Avoidance: Make sure deadlock can never happen.
  • Prevention: Ensure at least one of the four conditions fails.
  • Avoidance: The OS needs more information so that it can determine if the current request can be satisfied or delayed.
• Deadlock: Allow a system to enter a deadlock situation, detect it, and recover.
• Ignore Deadlock: Pretend deadlocks never occur in the system.

• Possible side effects of preventing deadlocks are low device utilization and reduced system throughput.

8.4.1  Mutual Exclusion

• By ensuring that at least one of the four conditions cannot hold, we can prevent the occurrence of a deadlock.
• Mutual Exclusion: Some sharable resources must be accessed exclusively (e.g., printer), which means we cannot deny the mutual exclusion conditio.

8.4.2  Hold and Wait

• No process can hold some resources and then request for other resources.
• Two strategies are possible:
  • A process must acquire all resources before it runs.
  • When a process requests for resources, it must hold none (i.e., returning resources before requesting for more).
• Resource utilization may be low, since many resources will be held and unused for a long time.
• Starvation is possible. A process that needs some popular resources may have to wait indefinitely.

8.4.3  No preemption

• Resources that are being held by the requesting process are preempted. There are two strategies:
  • If a process is holding some resources and requesting for some others that are being held by other processes, the resources of the requesting process are preempted. The preempted resources become available.
  • If the requested resources are not available:
    • If they are being held by processes that are waiting for additional resources, these resources are preempted and given to the requesting process.
    • Otherwise, the requesting process waits until the requested resources become available. While it is waiting, its resources may be preempted.
    • This works only if the state of the process and resources can be saved and restored easily (e.g., CPU & memory).

8.4.4  Circular Wait

• To break the circular waiting condition, we can order all resources types (e.g., tapes, printers).
• A process can only request resources higher than the resource types it holds.
• Suppose the ordering of tapes, disks, and printers are 1, 4, and 8. If a process holds a disk (4), it can only ask a printer (8) and cannot request a type (1).
• A process must release some lower order resources to request a lower order resource. To get types (1), a process must release its disk (4).

• Each process provides the maximum number of resources of each type it needs.
• With this information, there are algorithms that can ensure the system will never enter a deadlock state, This is deadlock avoidance.
• A deadlock-avoidance algorithm dynamically examines the resource-allocation state to ensure that a circular-wait condition can never exist.

8.5.1  Safe State

• A state is safe if the system can allocate resources to each process (up to its maximum, of course) in some order and still avoid a deadlock.
• A sequence of processes <P₁, P₂, …,P_n> is a safe sequence if for each process Pi in the sequence, its resource requests can be satisfied by the remaining resources and the sum of all resources that are being held by P₁, P₂, …, P_i-1. This means we can suspend P_i and run P₁, P₂, …, P_i-1 until they complete. Then, Pi will have all resources to run.
• In other word, a state is safe if there is a safe sequence. Otherwise, if no safe sequence exists, the system state is unsafe.
• An unsafe state is not necessarily a deadlock state. On the other hand, a deadlock state is an unsafe state.
• A system has 12 tapes and three processes A, B, C. At time t0, we have:

• Then, <B, A, C> is a safe sequence (safe state).
• The system has 12-(5+2+2) =3 free tapes.
• Since B needs 2 tapes, it can take 2, run, and return 4. Then, the system has (3-2) +4 =5 tapes. A now can take all 5 tapes and run. Finally, A returns 10 tapes for C to take 7 of them.

• At t1, C has one more tape, the system has 12-(5+2+3) =2 free tapes.
• At this point, only B can take these 2 and run. It returns 4, making 4 free tapes available.
• But none of A and C can run, and a deadlock occurs.
• The problem is due to granting C one more tape.
• A deadlock avoidance algorithm ensures that the system is always in a safe state. Therefore, no deadlock can occur.
• Resource requests are granted only if in doing so the system is still in a safe state.
• Consequently, resource utilization may be lower than those systems without using a deadlock avoidance algorithm.

8.5.2  Resource-Allocation Graph Algorithm

• A claim edge P_i -> Rj indicates that process P_i may request resource R_j at some time in the future.
• Suppose that process P_i requests resource R_j. The request can be granted only if converting the request edge P_i -> R_j to an assignment edge R_j -> P_i does not result in the formation of a cycle in the resource-allocation graph.
• We check for safety by using a cycle-detection algorithm, an algorithm for detecting a cycle in this graph requires an order of n² operations, where n is the number of processes in the system.

8.5.3  Banker’s Algorithm

• The system has m resource types and n processes.
• Each process must declare its maximum needs.
• The following arrays are used:
  • Available [1...m]: one entry for each resource. Available[j] =k means resource type j has k units available.
  • Max [1 …n, 1 …m]: maximum demand of each process. Max [i, j] =k means process i needs k units of resource j.
  • Allocation [1 …n, 1 …m]: resources allocated to each process. Allocation [i, j] =k means process i is currently allocated k units of resource j.
  • Need [1 …n, 1 …m]: the remaining resource need of each process. Need [i, j] =k means process i needs k more units of resource j. Need [i, j] = Max [i, j] – Allocation [i, j].
  • We will use A [i, *] to indicate the i-th row of matrix A.
  • Given two arrays A [1 …m] and B [1 …m], A <= B if A [i] <= B [i] for all i.Given two matrices A [1 …n, 1 …m] and B [1 …n, 1 …m], A [i, *] <= B [i, *]if  A [i, j] <= B [i, j] for all j.
  • When a resource request is made by process i, this algorithm call the Resource-Request algorithm to determine if the request can be granted. The Resource-Request altorithm calls the Safety Algorithm to determine if a state is safe.

8.5.3.1         Safety Algorithm

• Let Work [1 …m] and Finish [1 …n] be two working arrays.
• Work := Available and Finish [i] := FALSE for all i.
• Find an i such that both
  • Finish [i] = FALSE                      // process i is not yet done
  • Need [i, *] <= Work         // its need can be satisfied

If no such i exists, go to Step

• Work = Work + Allocation [i, *]            // run it and reclaim
• Finish [i] = TRUE  // process i completes

go to Step 3

• If Finish [i] = TRUE for all i, the system is in a safe state

8.5.3.2         Resource-Request Algorithm

• Let Request [1 …n, 1 …m] be the request matrix. Request [i, j] =k means process i requests k units of resource j.
• If Request [i, *] <= Need [i, *], go to Step 3. Otherwise, it is an error.
• If Request [i, *] <= Available, go to Step 4. Otherwise, process i waits.
• Do the following:
  • Available = Available – Request [i, *]
  • Allocation [i, *] = Allocation [i, *] + Request [i, *]
  • Need [i, *] = Need[i, *] – Request [i, *]

If the result is a safe state (Safety Algorithm), the request is granted. Otherwise, process i waits and the resource-allocation tables are stored back to the original.

8.5.3.3         An Illustrative Example

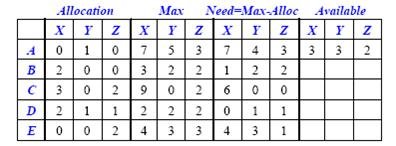

• Consider a system of 5 processes A, B, C, D and E, and 3 resource types (X=10, Y=5, Z=7). At time t0, we havw

• A safe sequence is <B, D, E, C, A>. Since B’s [1, 2, 2] <= Avail’s [3,3,2], B runs. Then, Avail=[2,0,0]+[3,3,3] =[5,3,2]. D runs next. After this, Avail=[5,3,2]+[2,1,1] =[7,4,3]. E runs next.
• Avail=[7,4,3]+[0,0,2] =[7,4,5]. Since C’s [6,0,0] <= Avail = [7,4,5], C runs. After this, Avail = [7,4,5]+[3,0,2] =[10,4,7] and A run.
• There are other safe sequences: <D, E, B, A, C>, <D, B, A, E, C>, …

• If a system does not use a deadlock prevention or a deadlock avoidance algorithm, then a deadlock situation may occur. Thus, we need
  • An algorithm that can examine the system state to determine if a deadlock has occurred. This is a deadlock detection algorithm.
  • An algorithm that can help recover from a deadlock. This is a recovery algorithm.

8.6.1  Single Instance of Each Resource Type

• To detect deadlocks, the system needs to maintain the wait-for graph and periodically to invoke an algorithm that searches for a cycle in the graph.

8.6.2  Several Instances of a Resource Type

• A deadlock detection algorithm does not have to know the maximum need Max and the current need Need. It uses only Available, Allocation and Request.

• Let Work [1 …m] and Finish [1 …n] be two working arrays.
• Work := Available and Finish [i] :=FALSE for all i
• Find an i such that both
  • Finish [i] = FALSE                      // process i is not yet done
  • Request [I, *] <= Work    // its request can be satisfied, use Request here rather than Need in the safety algorithm
    If no such i exists, go to Step 5
  • Work = Work + Allocation [I, *]            // run it and reclaim
    Finish [i] = TRUE             // process i completes
    go to Step 3
  • If Finish [i] TRUE for all i, the system is in a safe state. If Finish [i] = FALSE, then process P_i is deadlocked.

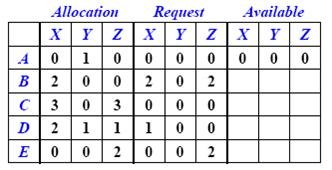

• Suppose maximum available resource is [7,2,6] and the current state of resource allocation is shown above.
• We can run A first, making Available = [0,1,0].
• Then, we run C, making Available = [3,1,3]. This is followed by D, making Available = [5,2,4], and followed by B and E.

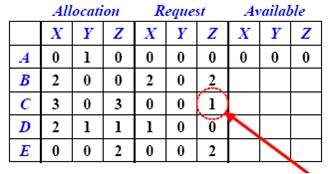

• Suppose C requests for one more resource Z.
• Now, A can run, making Available = [0,1,0].
• However, none of B, C, D and E can run. Therefore, B, C, D and E are deadlocked!

8.6.3  Detection-Algorithm Usage

• If deadlocks occur frequently, then the detection algorithm should be invoked frequently.
• Once per hour or whenever CPU utilization becomes low (i.e., below 40%). Low CPU utilization means more processes are waiting.

• When a detection algorithm determines a deadlock has occurred, the algorithm may inform the system administrator to deal with it. Or, allow the system to recover from a deadlock.
• There are two options
  • Process Termination
  • Resource Preemption
• These two options are not mutually exclusive

8.7.1  Process Termination

• Abort all deadlocked processes.
• Abort one process at a time until the deadlock cycle is eliminated.
• Problem:
  • Aborting a process may not be easy. What if a process is updating or printing a large file? The system must find some way to maintain the state of the file and printer before they can be reused.
  • The termination may be determined by the priority/importance of a process.
• We should about those processes the termination of which will incur the minimum cost.

8.7.2  Resource Preemption

• Selecting a victim: which resources and which processes are to be preempted?
• Rollback: If we preempt a resource from a process, what should be done with that process?
  • Total Rollback: abort the process and restart it.
  • Partial Rollback: rollback the process only as far as necessary to break the deadlock.
• Starvation: We cannot always pick the same process as a victim. Some limit must be set (e.g., include the number of rollbacks in the cost factor).
